Peavey Passive Direct Interface PDI

Application: PDI Passive Sound system Direct interface for: Guitars, Bass Guitars, Keyboards, Electronic Drums, Instrument amplifier Preamp Outputs.

Description: The PDI is the classic Passive Direct Interface box. The PDI transformer provides the high input impedance, ground isolation and signal attenuation needed to connect a variety of instruments to a mixer mic input. The transformer used in the PDI is the reason for its outstanding performance. Unlike many of the inexpensive DIs on the market, the PDI maintains its flat frequency response and low distortion even when connected to a high impedance source like an electric guitar. The slide switch ground lift switch is easy to operate but is not likely to be accidentally changed. The PDI can also be switched to stereo input mode for keyboards, electronic drums and other electronic stereo sources. When the stereo mode is selected, the PDI sums the left and right input signals to create a balanced mono output.

Features:

High quality transformer with Faraday shield

Instrument input and thru jacks

Stereo input for Electronic instruments

Balanced Mono mic level output

Ground lift switch

Mono/Stereo Input switch

Rugged construction

Connections and Controls:

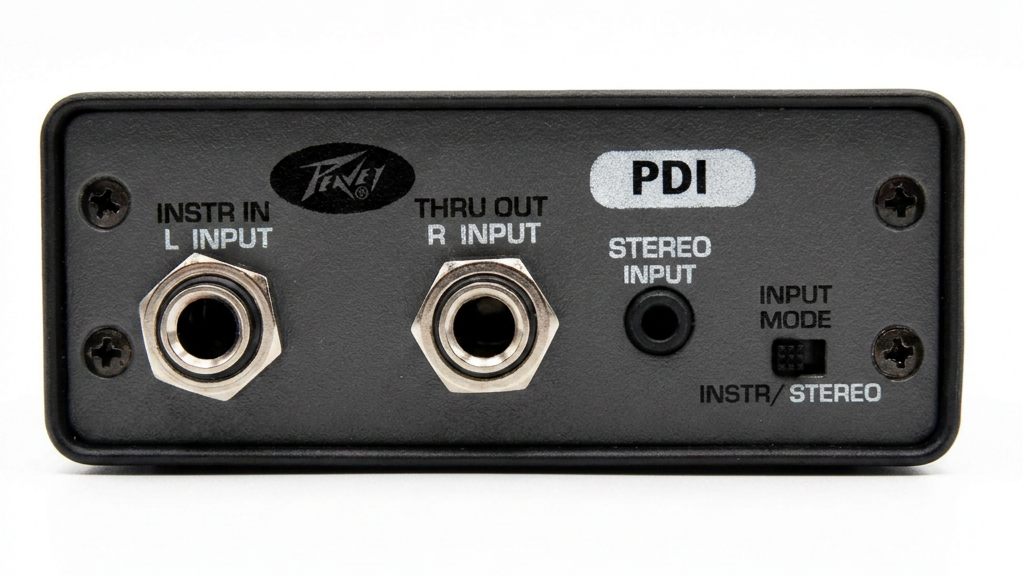

Instrument/Left Input

Thru Out/ Right Input

3.5mm Stereo Input

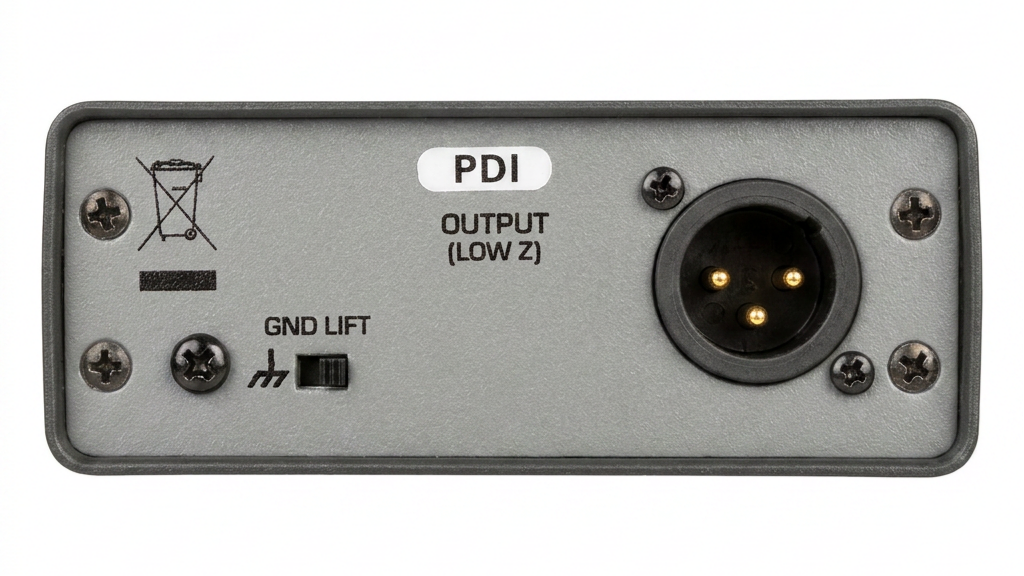

Balanced Mic level Output

Ground Lift Switch

Instrument-Thru / Stereo Left-Right input switch

Specifications: Frequency Response:

20 Hz to 20 kHz +- 0.1 dB with 150 Ohm source 2k Ohm XLR output Load

20 Hz to 20 kHz +- 0.5 dB with 5k Ohm source 2k Ohm XLR output Load
